Code Pitfall: PyTorch Module Registration Mechanism

As I used PyTorch nn.Module for more complicated deep learning systems, I gradually found that nn.Module has many mechansims that I didn’t know before, which also becomes the pitfalls of coding in PyTorch.

The pitfall I am talking about here is concerned with the module registration mechanism. The way PyTorch identifies the submodules in a module is through assigning instance property (they call it register) in the __init__() method of nn.Module.

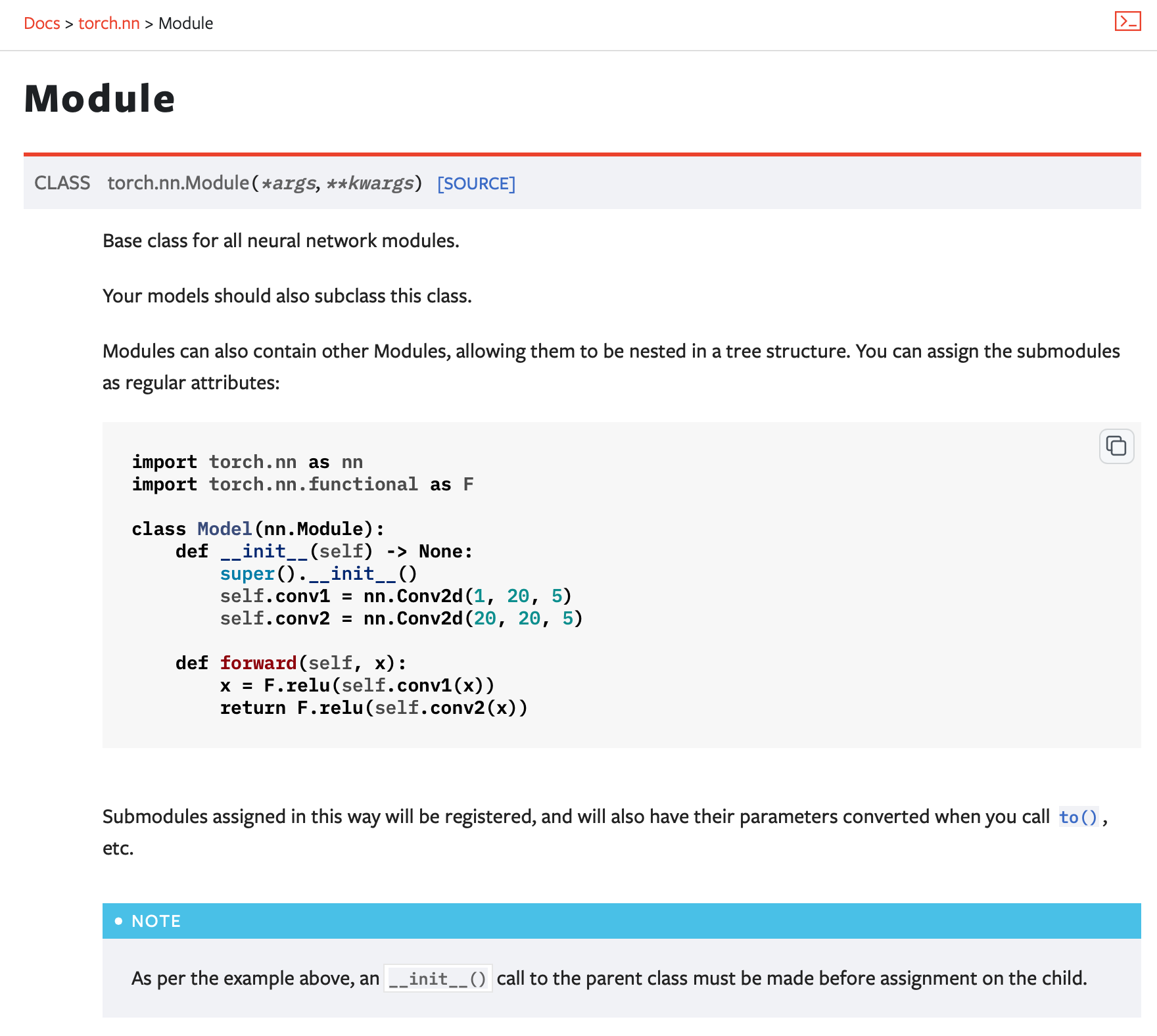

API documentation of nn.Module in PyTorch Docs.

I came across a weird situation in my project that has diamond inheritance on nn.Module classes (see my previous post). The following toy example codes illustrate the problem:

from torch import nn


class A(nn.Module):
    def __init__(self):
        nn.Module.__init__(self)
        self.a = nn.Linear(1, 1)

    def forward(self):
        return


class B(nn.Module):
    def __init__(self):
        nn.Module.__init__(self)
        self.b = nn.Linear(2, 2)

    def forward(self):
        return


class C(A, B):
    def __init__(self):
        A.__init__(self)
        B.__init__(self)
        self.c = nn.Linear(3, 3)

    def forward(self):
        return

C()

We expect C has three submodules a, b and c after the instantiation. However, in reality, only b and c are registered in C instance, while a is not. If we debug with some prints:

class C(A, B):
    def __init__(self):
        A.__init__(self)
        print(self.a)
        B.__init__(self)
        print(self.b)
        print(self.a)
        self.c = nn.Linear(3, 3)

We found it prints the first print(self.a) and print(self.b) smoothly, but the second print(self.a) raises an AttributeError that a is not defined. However, if self.a is another type of variables except nn.Module, it managed to be printed!

This is the pitfall. The only possible reason is something happened in B.__init__(self) that makes a lost, and this only happened to nn.Module variable.

We can find the reason simply from the source code. The answer is the internal mechanism inside nn.Module that related to the module registration: lots of __setattr__ are called in the __init__() method of nn.Module to register the submodules, most of which are sort of resetting actions through direct manipulation of class attributes. There is a super().__setattr__("_modules", {}) that probably make the attribute self.a disappear.

class Module:

    def __init__(self, *args, **kwargs) -> None:
        ...

        super().__setattr__("training", True)
        super().__setattr__("_parameters", {})
        super().__setattr__("_buffers", {})
        super().__setattr__("_non_persistent_buffers_set", set())
        super().__setattr__("_backward_pre_hooks", OrderedDict())
        super().__setattr__("_backward_hooks", OrderedDict())
        super().__setattr__("_is_full_backward_hook", None)
        super().__setattr__("_forward_hooks", OrderedDict())
        super().__setattr__("_forward_hooks_with_kwargs", OrderedDict())
        super().__setattr__("_forward_hooks_always_called", OrderedDict())
        super().__setattr__("_forward_pre_hooks", OrderedDict())
        super().__setattr__("_forward_pre_hooks_with_kwargs", OrderedDict())
        super().__setattr__("_state_dict_hooks", OrderedDict())
        super().__setattr__("_state_dict_pre_hooks", OrderedDict())
        super().__setattr__("_load_state_dict_pre_hooks", OrderedDict())
        super().__setattr__("_load_state_dict_post_hooks", OrderedDict())
        super().__setattr__("_modules", {})

        if self.call_super_init:
            super().__init__(*args, **kwargs)

Now we go back to our original intention. The code above is to combine two modules into a new one, and we now see it doesn’t work if we do this through multiple inheritance. How to do that?

I figured out a way: do the module initialisation of subclasses A or B in a seperate method and call it in C’s __init__() method explicitly:

class A(nn.Module):
    def __init__(self):
        nn.Module.__init__(self)
        self.register_module_explicitly(...)

    def register_modules(self, ...):
        self.a = nn.Linear(1, 1)

    def forward(self):
        return


class B(nn.Module):
    def __init__(self):
        nn.Module.__init__(self)
        self.b = nn.Linear(2, 2)

    def forward(self):
        return


class C(A, B):
    def __init__(self):
        A.__init__(self)
        B.__init__(self)
        A.register_module_explicitly(self)
        self.c = nn.Linear(3, 3)

    def forward(self):
        return

It works although this is not an elegant way because self.a is registered twice and it makes A look slightly unconventional. Note that there is a existingregister_module() method in nn.Module, don’t take that time.
